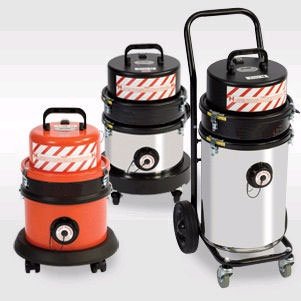

Mobile vacuum cleaner for hazardous dust
The Krahnen range of Type H vacuum cleaners has been purposely designed and built to meet the needs of users to safely and effectively pick up hazardous dusts and debris. Examples of hazardous dusts include asbestos, finely divided silica, carcinogens and highly active pharmaceutical products. Each model in the range is equipped with three stages of filtration on the negative pressure (suction) side of the motor. The first stage is a sealable disposable paper bag, the second stage is a high efficiency cloth filter using a filter medium that is specially designed as a pre-filter material for HEPA filters. The third stage is an oversized HEPA (High Efficiency Particulate Air) cartridge filter housed in a sturdy replaceable module. Every Type H vacuum cleaner is individually DOP tested, on calibrated test equipment, to achieve a filtration efficiency of greater than 99.995%.
• Twin fan motor
• One or two motors
• Thermal switch protection against overheating
• Four castor chassis or tubular caddy for rough surfaces
• Hose entry accepts 32, 38 & 51mm hose and tool kits
• Smaller models supplied with 32mm hose and tool kit
• Available at time of order or as retrofit: For models with stainless steel canisters only
• 3-stage-filtration
- 1. Disposable paper bag
- 2. Cloth filter
- 3. H-Filter
Technical Specific. | /1 = 1.000 Watt | /2 = 2.000 Watt |
Engine | Electrical | Electrical |
Normal Voltage | 230 V / 50-60 Hz | 230 V / 50-60 Hz |
Airflow | 158 m³/h max. | 309 m³/h max. |
Vacuum | 250 mbar max. | 250 mbar max. |
Technical Specific. | KV 10/1 H | KV 15/1 H | KV 18/1 H | KV 20/x H | KV 30/x H | KV 45/x H |
Capacity | 8,5 Litres | 9 Litres | 23 Litres | 20 Litres | 30 Litres | 40 Litres |
Weight 1 kW | 11 kg | 13 kg | 18,5 kg | 18,5 kg | 23,5 kg | 24,5 kg |
Weight 2 kW | - | - | - | 21,5 kg | 26,5 kg | 27,5 kg |
Dimensions L,W,H (mm) | 360x360x500 | 380x380x550 | 420x410x895 | 440x440x795 | 500x460x925 | 500x460x1060 |
Part-No.: 1 kW | 2009739 | 2009740 | 2009741 | 2009742 | 2009743 | 2009724 |
Part-No.: 2 kW | - | - | - | 2009738 | 2004379 | 2004380 |
