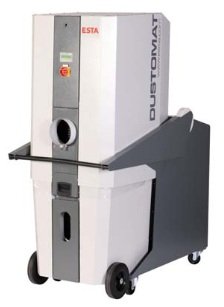

The mobile-DUSTOMAT dust have proved in recent years in many commercial and industrial enterprises. They suck dust and chips, resulting from production processes, from safe and provide for clean and healthy workplaces. The new DUSTOMAT T-and P-series delivers air through their technical optimization, and even more compact design.
For the uniform flow of the filter elements in filter housing provides a built-in type collectors. Also guarantees the separation of coarse particles, long filter life.
Depending on the application environment, the devices can now be optionally equipped with one of two Filter types: Filter cartridge and bag Filter are located in different versions before dedusting.
- Low operating costs
- Slight dust disposal
- Standalone or central suction used as mobile
- Optional with Mark for special applications
- Single and multiple workstations in industry and crafts
- Free-flowing dusts
- Dry chips
- Depending on model, there are 2 cleaning variation available:
Jet-cleaning bag and motor filter cleaning - Integrated type collectors
- Depending on model: cleanable filter cartridge for dust class M
- After Filter Cassette (dust class H) as an option
- Test certificates H, H3, GS
- Optionally available as ATEX version
Engine | Side channel blowers |
Power | 2,2 kW / 3,0 kW |
Power consumption | 400 V - 50 Hz. |
Intake volume | 1.500 / 2.500 m³/h, max. |
Vacuum | 2.300 (PA), max. |
Container volume | 200 l |
Filter material | Dust class M |
Filter cleaning | motor |
Compressed air requirement | 28,8 (l/min) |
Compressed air connection | 1/4" |
Total filter area | 5.000 / 10.000 cm² |
Hose connection | 125 / 180 mm |
Empty weight | 320 kg |
Noise level | 72 dB (A) |
Dimensions LxWxH | 1650x830x1980 mm/ 200l |
