Specially in potential explosive areas must the insert of explosion proofed cleaning machines be considered. Simultaneously those machines offer a low-cost alternative compared with the manual cleaning. Soiling can cause a negative influence regarding the conductivity of the surfaces. Those interruptions of the contact can lead to disturbance, which will require a careful cleaning coupled with a high technical standard.

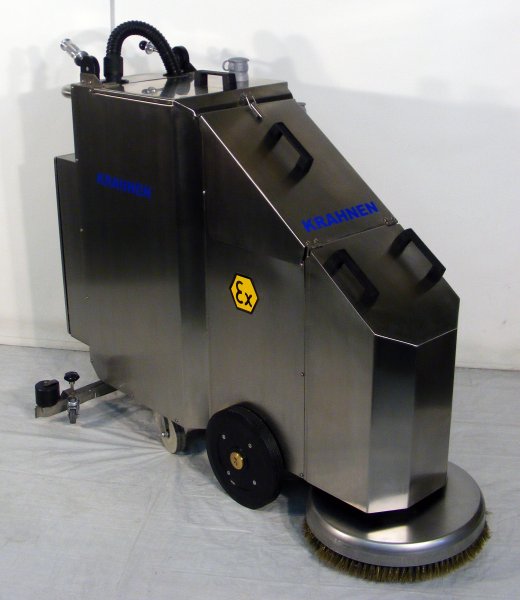

The machine is suitable for large and smaller surfaces -specially for aggressive media. The 46 B 60 EX is manufactured for the insert in the ex-zones 1 / 2 / 21 / 22 and does not require an electrical cable. It is possible to spray, to scrub and to dry the floor in one step.
The multifunctional insert and the easy handling is guaranteed by the high quality, the rotating brushes and the disposition of the control units.
Spraying - scrubbing - drying
All kind of floors in production and ware housing areas of chemical-, pharmaceutical- and petrochemical industry as well as rawmaterial and waste handling and any explosion protected area.
• compact and very flexible
• made of stainless steel, very robust
• maximum technical security
• very easy to handle
• high brush performance / pressure
• resistant against solvent
• almost maintenaince free
• including hand tool kit
• cardanic suspension to compensate roughness of the surfaces
Drive | Batteries, 24 V |
Power of suctionmotor | 0,55 kW |
Power of bruchmotor | 0,37 kW |
No. of brush | 1 |
Widt of brush | 460 mm |
Working widt suction | 600 mm |
Freshwater volume | 42 Liter |
Dirtywater volume | 45 Liter |
Dimensions LxBxH | 1490x630x1240 mm |
Weight | 318 kg (incl.Batteries) |
Operating time | appr. 3 h |
Unterdruck | 120 mbar, max. |
Brush pressure | 40 kg |
