Floor cleaning machine for use in EX-Zone 1/2 and 21/22

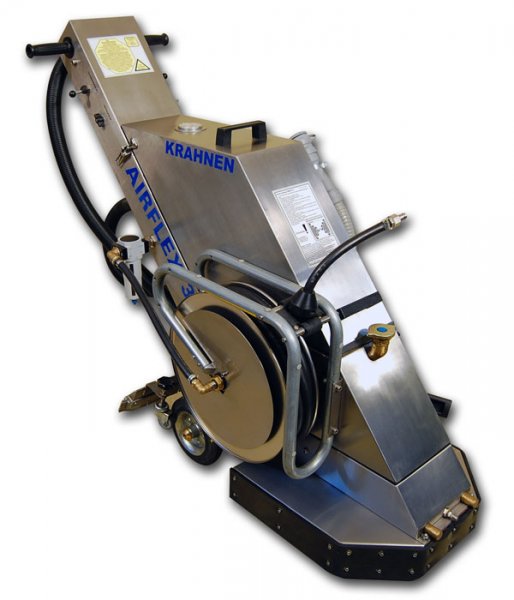

AIRFLEX 30

Specially in potential explosive areas must the insert of pneumatic driven cleaning machines be considered. Simultaneously those machines offer a low-cost alternative compared with the manual cleaning. Soiling can cause a negative influence regarding the conductivity of the surfaces. Those interruptions of the contact can lead to disturbance, which will require a careful cleaning coupled with a high technical standard.

Range of Applications
Function Scope
Features / Advantages
Technical Data

All kind of floors in production and smaller ware housing areas of chemical-, pharmaceutical- and petrochemical industry as well as rawmaterial and waste handling and any explosion protected area.

The machine is suitable for large and smaller surfaces -specially for aggressive media. The AIRFLEX 30 is manufactured for the insert in the ex-zones 1 / 2 / 21 / 22 and does not require any electrical energy. It is possible to spray, to scrub and to dry the floor in one step.
The multifunctional insert and the easy handling is guaranteed by the pneumatic drive, the rotating brushes and the disposition of the control units.

• without any electrical parts
• compact and very flexible
• high brush performance / pressure
• resistant against solvent
• almost maintenaince free
• very robust
• height-adjustable
• made of stainless steel
• very easy to handle
• maximum technical security
• cardanic suspension to compensate roughness of the surfaces

Drive	air driven (4-8 bar)
No. of brush	1
Widt of brush	470 mm
Weight	55 kg
Air consumption	32 - 42 m³/h
Dimensions LxBxH	1250x470x1100 mm
Brush presssure	0,25 N/cm²
Noise level	~69 dB (A)
