Applicable for the extraction of all kind of flammable and none flammable dusts and gases.

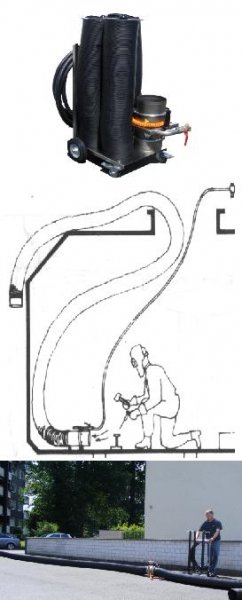

The AIRJET Ventilator, shockproof and easily carried, is a compressed air operating fan. Having no moving parts, it is lameproof and virtually maintenancefree. The unit, which can be used for blowing and extraction applications, is owered by multiples ECOJETS sucking-conveying nozzles, which can be chosen in dependence for the case of insert.
For given total air flow the AIRJET is lighter in weight and smaller in size than an electrical driven fan and particular useful in hazardous areas, as it is usually possible to locate the air compressor in a safe area with only the compressed air hose running into the hazard zone.
When ventilating sewers, tunnels, caissons and similar spaces requiring the transport of air, dust, fumes or dangerous gases over long distances, several AIRJET can be connected together by using flexible or rigid hoses.
• suitable for the insert in the ex-zones 1/2/21/22 (0/20)
• maximum technical security
• all relevant parts out of premium stainless steel
• no electrical power necessary
• virtually maintenance-free
• Solvent resistant
• transportable
Model | consump.* | outflow* | hose | height | length | weight | Hose | Part.-No | Part.-No |
m³/h | m³/h | Ø mm | mm | mm | kg | connection | EX | Non EX | |
AJ 425 | 24 | 680 | 102 | 165 | 230 | 2,0 | 1/2" | 1500500 | 2002165 |
AJ 620 | 68 | 1632 | 152 | 203 | 356 | 2,3 | 1/2" | 1500600 | 2002166 |
AJ 825 | 96 | 2720 | 203 | 305 | 457 | 5,7 | 5/8" | 1500700 | 2002167 |
AJ 1250 |
232 |
4964 | 305 | 406 | 508 | 13,6 | 1" | 1500800 | 2002168 |
- 1 bar | appr. -19% | appr. -15% | *by using 4 bar compressed air | ||
+ 1 bar | appr. +23% | appr. +22% |
