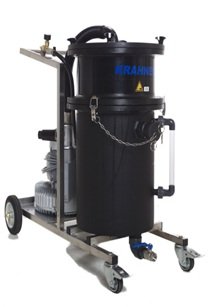

The highly mobile and very robust industrial vacuum cleaner is designed to accommodate non-flammable acids and alkalis.
All wetted parts are made from polyethylene or polypropylene, so that the highest resistance are guaranteed against all types of acids. The built-in activated carbon Filter adsorbs the dissolved gas content in the intake air.
With a bed of 8 liters of activated carbon pellets of activated carbon Filter guaranteeing a 100% adsorption of the acid gas. The enormous filtering surface ensures a long service life in industrial applications. The saturation level of readily available activated carbon filter should be determined at regular intervals using Drager tubes, gas detection or measurement of weight gain.
Continuous operation of fixed side-channel compressor with the suction unit mounted on a stainless steel roller trolley, which offers the ultimate in mobility. (**= KW)
Engine | Side channel blower |
Power | 1,3 / 2,2 kW |
Power consumption | 400 V / 50 Hz. [IP 55] |
Intake volume | 145 / 275 m³/h max. |
Vacuum | 170 / 190 mbar max. |
Container volume | 40 Liter |
Total filter area | ~ 5 Mio. cm² |
Hose connection | 38 / 50 mm |
Weight | ca. 67 / 75 kg |
Noise level | 67 dB (A) |
Dimension L / W / H | 950x600x1180 mm |
