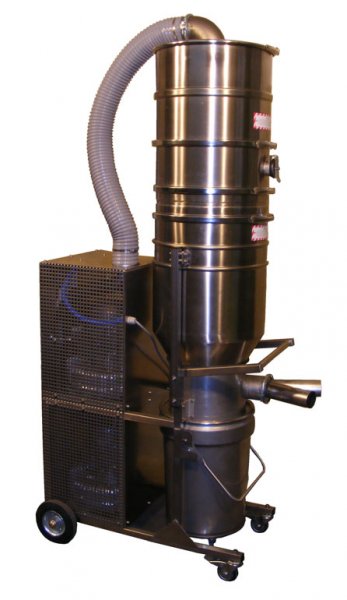

Mobile industrial vacuum cleaner for high suction volume with an extra large filter surface.
The Standard Model ES VA sucks a tangential inlet the suction material into the hopper. The differential pressure-cleaning filter FDR or a pneumatic filter cleaning allows the user an effective cleaning of the filter stage 1 with high particulate loads.
The extremely simple operation and cleaning capabilities of the vacuum cleaner designed specifically for industrial applications.
The suction cups provide maximum security for the elimination of all types of dry production residues.
Suitable for holding combustible and hazardous dust in the chemical, pharmaceutical and petrochemical industries and commodities, inflames and waste processing. Portable, powerful vacuum cleaner which can also be used on stationary suction devices.
• Continuous Fixed side channel blowers
• Highest technical security
• All stainless steel
• Very robust
• Built-in motor protection switch
• Power cable length: 10m • Suitable for combustible dusts
• Simple operation and maintenance
Engine | electric motor |
Power | 2x 2,2 oder 2 x 3,0 kW |
Engine performance | 400 V / 50 Hz. [IP 65] |
Protection type | 820 m³/h oder 860 m³/h |
Intake volume max. | 170 oder 220 mbar |
Vacuum max. | 50 Liter |
Tank | 60.000 cm² |
Filter area | 80 mm, reduceable |
Hose connecting | ca. 140 / 190 kg |
Weight | 72 dB (A) |
Dimensions l / w / h | 1.250x680x1.950 mm |
