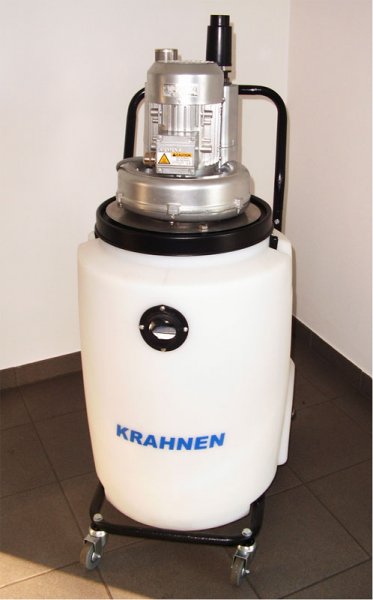

This range of high capacity industrial vacuum cleaners has been specially designed to cope with large volumes of liquids. It is the preferred choice in many industries such as flood clearance, water tank emptying, fire services, flat roofing and many others. The KV 100 model range is based on a very strong implosion resistant rotationally moulded plastic canister mounted on a heavy duty expoxy coated tubular caddy. The detachable caddy is fitted with two 240mm rear wheels and two heavy duty swivel castors.
The motor head is moulded from thick section dent and corrosion resistant plastic. The standard model, which is suitable for wet or dry pick up, is fitted with a drain hose and stopper to facilitate quick liquid disposal. Pump out models are fitted with a high quality stainless steel submersible pump, automatic float type level switch and 10 metre long see through discharge hose. This allows continuous collection and pump out – especially useful for flooded basements and tanks or where it is too far to push the unit to the water disposal point. Pump out models are suitable for wet pick up only.
• High-quality standards
• 3-phase current device suitable for 3-shift operation
• Protection against overheating
• Virtually indestructible and corrosion resistant thick section motor head and canister
• Efficient float ball wet shut off
• Net filter to float cage to prevent motor damage
• Drain hose and stopper for liquid discharge
• Stainless steel discharge pump will handle particles up to 10mm diameter
• 10 meter see through discharge hose
• Hose entry will accept our 38mm and 51mm hose and tool kits
Engine | Side Channel Blower |
Power | 1,1 kW |
Normal Voltage | 400 V 50 Hz~ |
Airflow | 170 m³/h max. |
Vacuum | 140 mbar max. |
Capacity | 90 Liter |
Filter surface | 3.000 m² (not included) |
Weight | 38 mm / 50 mm |
Noise level | max. 72 dB (A) |
KV 400 | 970x560x840 mm (38,0 kg) |
KV 400 MP | 970x560x840 mm (46,0 kg) |
