A portion of the absorbed dust is deposited in the interior of the suction hose and accessories. Once the vacuum is turned off, this dust can re-emerge. It must be ensured that this does not endanger the employees escaping dust and / or contaminated the area.
A portion of the absorbed dust is deposited in the interior of the suction hose and accessories. Once the vacuum is turned off, this dust can re-emerge. It must be ensured that this does not endanger the employees escaping dust and / or contaminated the area.
Developed by the derricks system prevents the escape of dust and allows for maximum security. The suction hoses or pipes remain closed even in the hand under pressure-free state. The specially designed non-return valves are made from polyethylene, which can also be disposed of easily.
The sucked dust is collected in a removable container. The container is a micro fiber bag equal to the dust class M with a filtration efficiency of 99.5%. The downstream main filter (HEPA 14 / ULPA 15> 99.999%) is also a change in container and separates the fine particles. An additional H14 / U15 filter can be mounted on the motor housing.

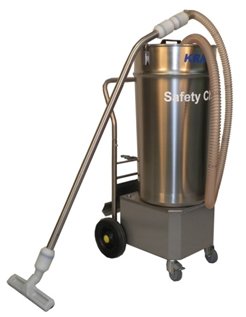

he Safety Model Change is designed to accommodate highly problematic, toxic dusts. The new concept guarantees from the floor nozzle up to HEPA / ULPA filter contamination-free, maximum safety. All of the safety criteria are fulfilled Change to 100%. The product can be absorbed without danger of the problem and appropriate disposal are fed.
• 4-stage filtration system:
• 1st Level: microfiber bag, K1, 0,33 m, efficiency: 99.5%
• 2 Level: polyester needle felt, anti-static PTFE membrane, filtration rate: 99.9%
• 3 Step ahead of the engine: ULPA filter, filtration efficiency 99.999%
• 4 Step behind the engine: ULPA filter, filtration efficiency 99.999%
• Low noise level
• Built-in filtering module
• Convenient drop tanks, tanks with 4 wheels
• Role-Stainless steel cart with 4 wheels
• Extensive accessories available
• Collection containers, filters and accessories autoclavable chamber
• Highest technical security
• Available in 230V, 400V, pneumatic and explosion-protected version
Power | 1.000 Watt / 230V |
Intake volume | 150 m³/h, max. |
Vacuum | 190 mbar, max. |
Container volume | 17 l |
Total filter area | 2,38 m² |
Weight | 30 kg |
Noise level | max. 69 dB (A) |
Dimensions L x W x H | 500x600x1.180mm |
