During the suction process vacuumed material passes first into a micro-fiber or paper bag (1). These larger particles are retained and preserved the following filters. Optionally, an additional filter (Class L) to protect the main filter are integrated. The main filter (H14 / U15 99.999%) separates the fine particles. An additional H14 filter is mounted on the motor housing. This prevents dirt portions of the engine or the cooling air into the environment. The motor head can be separated easily and quickly by means of a Quick Connect system from the suction housing.

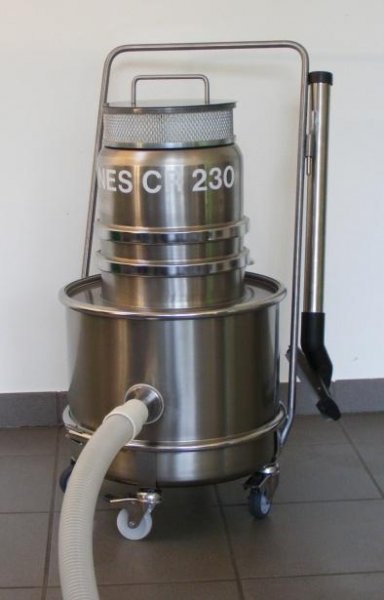

The NES model CR is designed to hold dust in clean rooms ISO Class 4 (formerly Class 10) conceived. The 3-stage filter system can even fine dirt particles easily absorbed and the corresponding disposal are fed.
Power | 900 Watt |
Power consumption | 230 V / 50 Hz. |
Volume intake | 140 m³/h max. |
Vacuum | 170 mbar max. |
Container volume | 25 l |
Total filter area | 20.000 cm² |
Weight | 26 kg |
Connection hose | 38 mm |
Noise level | max. 71 dB (A) |
Dimensions L x W x H | 400x420x600 mm |
Power | 1,1 kW |
Power consumption | 400 V / 50 Hz. |
Volume intake | 145 m³/h max. |
Vacuum | 170 mbar max. |
Container volume | 35 l (50l) |
Total filter area | 9.800 cm² |
Weight | 60 kg (EX= 65kg) |
Connection hose | 38 mm |
Noise level | max. 65 dB (A) |
Dimensions L x W x H | 900x600x1120 mm |
Power | compressed air 3,0 |
Volume intake | 140 m³/h max. |
Vacuum | 230 mbar max. |
Container volume | 25 l |
Total filter area | 9.800 cm² |
Weight | 26 kg |
Connection hose | 38 mm |
Noise level | max. 68 dB (A) |
Dimensions L x W x H | 400x420x600 mm |
