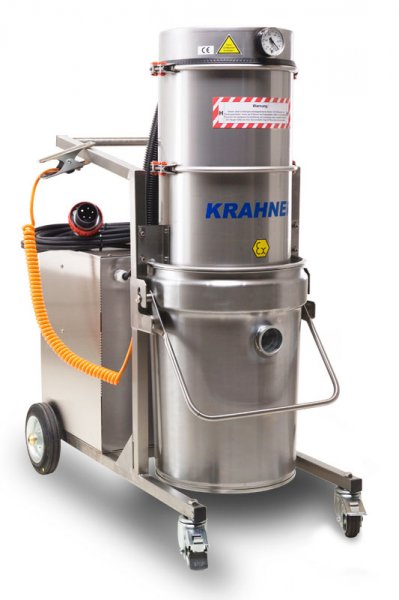

Industrial vacuum cleaner for flammable dust
EGS ** P EX
This vacuum cleaner is tested and certificated for applications where all kind of none flammable and flammable dust is to be recovered. Mobile, powerfull vacuum cleaner, which also can be used as a stationary vacuum unit in the chemical-, pharmaceutical- and petrochemical industry as well as any other companies with an explosion protected area.
Due to the short preparation time and easy handling are the units quick serviceable to recover dust or solid product rests.
The units are designed with a detachable recovery tank on wheels with a capacity of 35 or 50 liters. The goods can be recovered directly in the stainless steel tank or in a paper bag. The paper bags are very useable for easy emptying of recovered materials, for the dust-free disposal and for the protection of the filter units.
The vacuum cleaner will be delivered with filterclass M (1 micron) and a HEPA filter efficiency of 99.997% (Type H14).
• Can be used to recover flammable dust
• Reliable and built-to-last side canal blower
• Available in different power levels
• Mobile units
• Highest safety and technical quality
• All stainless steel construction incl. cart
• Reduced noise level
• Robust yet light weight
• Filter units can be cleaned and changed very easy
• Easy handling and virtually maintenance free
| Engine | Electrical Motor EX |
| Power | 1,1 / 1,85 / 3,3 kW |
| Normal Voltage | 400 V / 50 Hz. [IP 55] |
| Suction volume | 145 / 270 / 320 m³/h max. |
| Vacuum | 170 / 200 / 270 mbar max. |
| Volume of rec. tank | 35 / 50 Liter |
| Filter area | 20.000 cm² |
| Hose entry | 60 mm (can be reduced) |
| Weight | 77 / 85 / 102 kg |
| Noise level | 67 dB (A) |
| Dimensions LxWxH | 950x600x1240 / 1390 mm |
