The type-approved vacuum cleaners offer a high level of security in the elimination of all types of non-flammable and non-hazardous, liquid production wastes in hazardous areas zone 1 / 2 and 21/22.
The extremely simple operation and cleaning capabilities of the vacuum cleaner designed specifically for industrial applications. The modular system can be retrofitted at any time of the sucker.

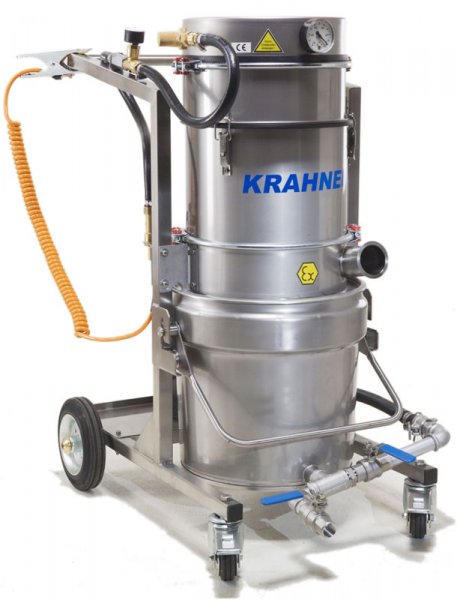

The Standard Model DGF A EX AK sucks a tangential inlet, the suction material into the hopper, where the principle of inertia causes a very high deposition in the hopper. A downstream activated carbon filter adsorbs the dissolved gas content in the intake air. Attention: Please note our different types of activated carbon filter with the corresponding adsorption (capacity index).
Suitable for holding flammable liquids in the chemical, pharmaceutical and petrochemical industries and commodities, inflames and waste processing. Portable, powerful vacuum cleaner is also suitable for stationary suction devices.
• Highest technical security
• All stainless steel
• Suitable for flammable liquids
• Simple operation and maintenance
• Easy and safe evacuation of stainless steel ball valve
Engine | Compressed air ejector |
Power | min. 3 bar |
Engine performance | 35 m³/h (by VD 4,5 bar) |
Intake volume max. | 145 m³/h (by VD 4,5 bar) |
Vacuum max. | 240 mbar (by VD 4,5 bar) |
Tank | 35 / 50 Liter |
Filter area | ~ 5.000 cm² |
Hose connecting | 60mm, reduceable |
Weight | 38 / 40 kg |
Noise level | 72 dB (A) |
Dimensions l / w / h | 700x600x1030 / 1180 mm |
