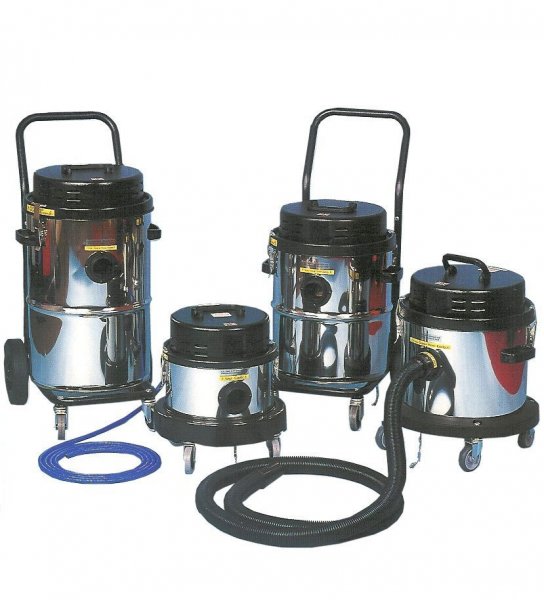

Vacuum Cleaners for dry/wet use in Ex-Zone 1/2/21/22

KAV ** W/D EX

This range of industrial vacuum cleaners is available in dry pick up only versions or wet & dry versions that can be converted to pick up dry dust and debris or non-flammable liquids.

Range of Applications
Properties/Advantages
Techincal Data
Dimensions, L x B x H / weight

All models are suitable for gas zone 1 & dust zone 21. Supplied on a stainless steel caddy with braked castors and conductive wheels where applicable and all models are fully earth bonded and have an anti-static (conductive) vacuum and air supply hose. Every vacuum cleaner is individually tested and provided with its own test certificate for earth path continuity. All units are supplied with a complete conductive accessory kit.

• compact and very flexible

• maximum technical security

• low maintenance

• very robust and less weight

• container from stainless steel

• easy handling and maintenance

• low investment costs

Drive	compressed air
Air consumtion	30 - 45 m³/h (bei 4,5bar)
Suction volume	145 m³/h
Vacuum	250 mbar
Container	see type
Filtersurface	3.000 cm²
Hose entry	38 mm
Noise level	max. 72 dB (A)

KAV 20 W/D EX	440x440x525 mm ( 9 kg)
KAV 30 W/D EX	460x500x640 mm (14,5 kg)
KAV 45 W/D EX	460x500x770 mm (15,5 kg)
