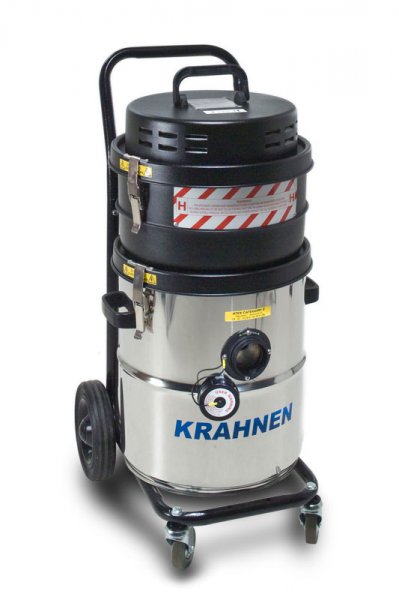

This range of industrial vacuum cleaners is suitable for picking up flammable*, hazardous dust and debris in gas zone 1 & dust zone 21. All models are supplied on a stainless steel caddy with braked castors and conductive wheels where applicable and all models are fully earth bonded and have an anti-static (conductive) vacuum and air supply hose. Every vacuum cleaner is individually tested and provided with its own test certificate for earth path continuity. All units are supplied with a complete conductive accessory kit.
(*please read manual)
• compact and very flexible
• maximum technical security
• low maintenance
• very robust and less weight
• container from stainless steel
• easy handling and maintenance
• low investment costs
Drive | compressed air |
Air consumtion | 30 - 45 m³/h (bei 4,5bar) |
Suction volume | 145 m³/h max. |
Vacuum | 250 mbar max. |
Container | see type |
Filtersurface | 9.800 cm² (KAV 15-18) |
20.000 cm² (KAV 20-45) | |
Hose entry | 38 mm |
Noise level | max. 72 dB (A) |
KAV 15 H EX | 380x380x520 mm ( 9,0 kg) |
KAV 18 H EX | 380x380x725 mm ( 9,5 kg) |
KAV 20 H EX | 440x440x725 mm (15,5 kg) |
KAV 30 H EX | 460x500x835 mm (22,0 kg) |
KAV 45 H EX | 460x500x965 mm (23,3 kg) |
